| Category |
Specification |
| Crane Type |

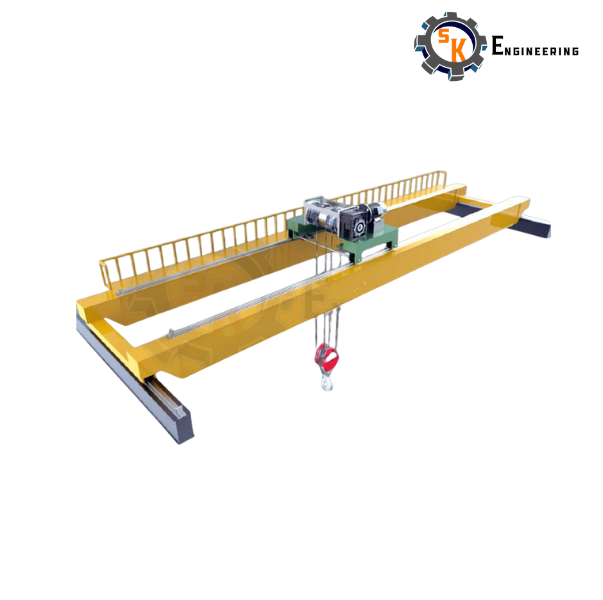

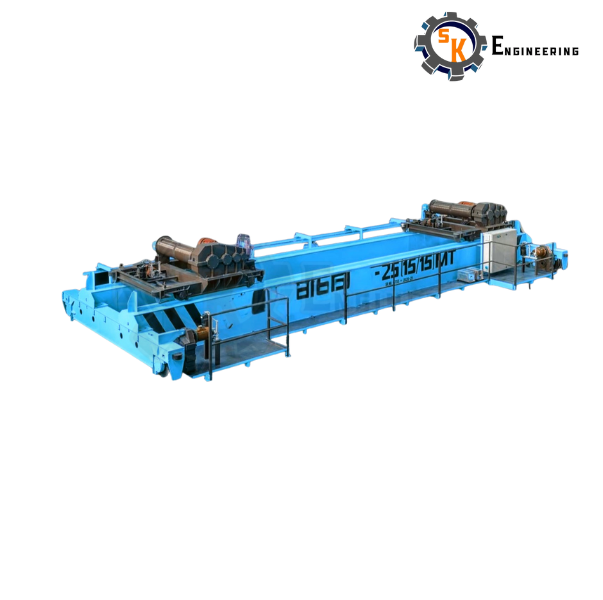

SK ENG Double Girder EOT Crane (Electric Operated) |
| Capacity Range |
5 Ton – 200 Ton (customizable) |
| Span Range |
10m – 40m (customizable) |
| Lifting Height |
6m – 30m (custom) |
| Duty Class |
Duty Class Class II, III, IV (IS 3177 / IS 807 Standard) |
| Girder Design |
Girder Design Box Type / Plate Girder / Fabricated Steel Structure |
| Hoist Type |
Wire Rope Hoist / Crab Type Hoist |
| Lifting Speed |
3–10 m/min |
| Cross Travel Speed |
10–25 m/min |
| Long Travel Speed |
20–40 m/min |
| Crane Motor |
ROTOMOTIVE S4/S3 Duty Motor |
| Brakes |
Electromagnetic / DC disc brakes |
| Gearbox |
Helical gearbox, oil-lubricated, low noise |
| Control System |
Pendant control / Remote control / Cabin control |
| Power Supply |
415V, 3-Phase, 50 Hz AC |
| Safety Features |
Overload limiter, anti-collision system, limit switches, rail clamps |
| Painting |
Epoxy primer + industrial top coat |
| Finish |
|
| Structure Standard |
IS 807 & IS 800 compliant |
