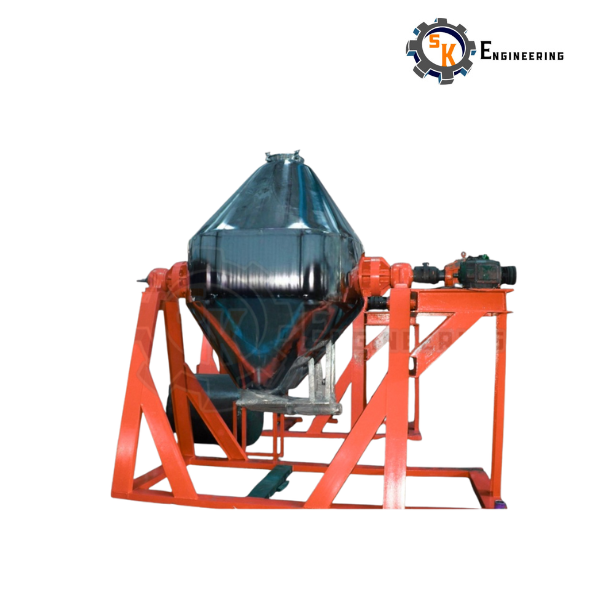

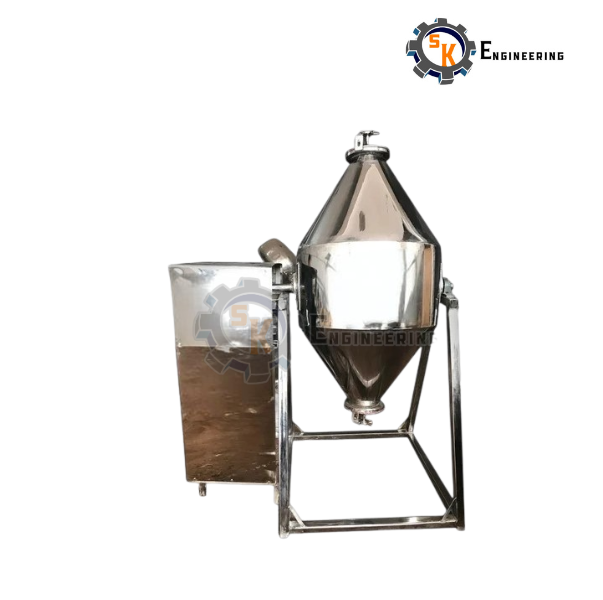

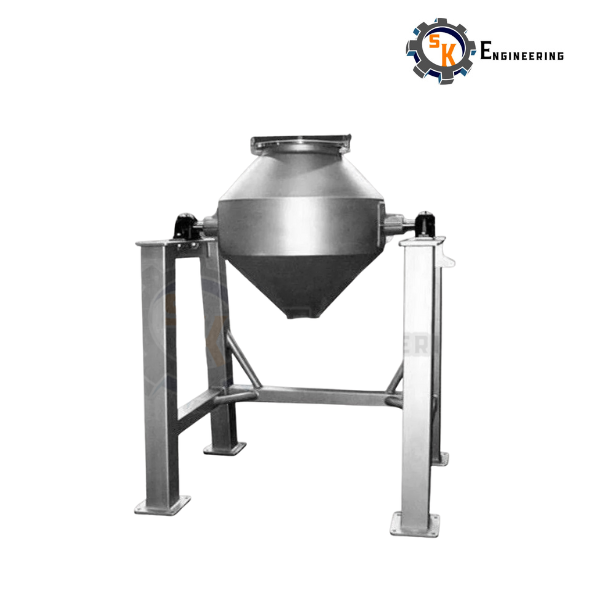

Double Cone Blender
An SS Double Cone Blender is a highly efficient mixing equipment designed for gentle and uniform blending of dry powders and granules. Its unique double-cone geometry ensures multi-directional tumbling, which eliminates dead spots and promotes homogeneous mixing without generating excessive heat.
Manufactured using GMP-grade stainless steel (SS304 / SS316), the blender is ideal for sensitive products in pharmaceuticals, food, nutraceuticals, chemicals, ayurvedic powders, cosmetic ingredients, and specialty materials.
The machine features a compact, balanced rotating assembly with smooth internal surfaces to ensure complete discharge and zero material retention. Customizable capacities and automation options make it suitable for small to large production environments.
| Parameter | Specification |
| Capacity Range | 25 L to 5000 L |
| Material of Construction | SS304 / SS316 / SS316L |
| Blender Shape | Double Cone, 90° cone angle |
| Drive System | Drive System Gearbox with electric motor |
| Rotational Speed | 8 – 20 RPM (variable through VFD) |
| Motor Power | 0.5 HP to 20 HP (depends on capacity) |
| Charging Port | Top loading with butterfly/tri-clamp |
| Discharge Valve | Butterfly / Slide / Rotary valve |
| Surface Finish | Surface Finish Internal mirror polish (Ra < 0.5 µm), external matt finish |
| Seal Type | Seal Type Food-grade gasket seals |
| Safety Features | Limit switches, safety guard, emergency stop |
| Control Panel | Control Panel Digital / PLC with VFD option |
| Cleaning Method | Manual / CIP compatible (optional) |
| Operating Mode | Batch mixing |
