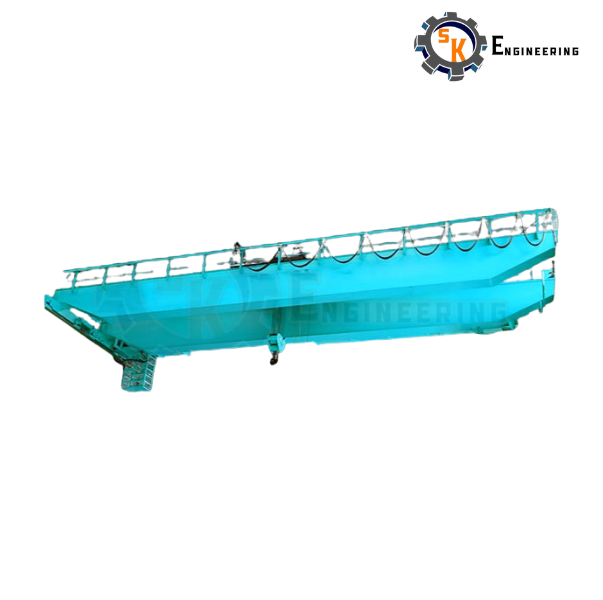

Flame Proof (Explosion-Proof) EOT Cranes
Flame Proof Cranes are specially designed for hazardous, explosive, or flammable environments such as chemical plants, refineries, gas storage, paint shops, and pharmaceutical industries. All electrical components are Explosion-Proof (Ex-d) certified for safe operation in Gas Group II A, II B, II C as per IS/IEC standards.
| Category | Specification |
| Crane Type | Single Girder / Double Girder Flame Proof EOT Crane |
| Capacity Range | Capacity Range 1 Ton – 50 Ton (customizable) |
| Span Range | 5m – 30m |
| Lifting Height | 6m – 20m (custom) |
| Hazardous Area Classification | Zone 1 & Zone 2 |
| Gas Group | RIIA / IIB / IIC compliant |

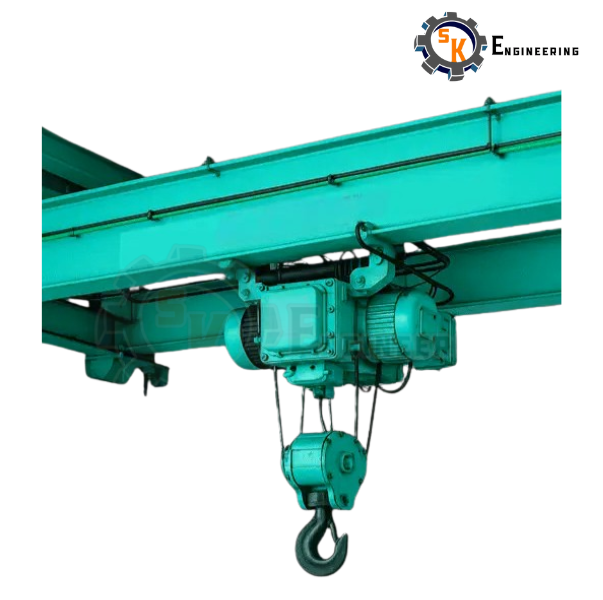

| Flame Proof Hoist | Wire Rope Hoist / Chain Hoist (Ex-d Protection) |
| Flame Proof Motors | Flame Proof Motors Ex-d certified ROTOMOTIVE / as per requirement |
| Protection Class | IP 55 / IP 65 |
| Lifting Speed | 3 – 10 m/min |
| Cross Travel Speed | 10 – 20 m/min |
| Long Travel Speed | 20 – 40 m/min |
| Brakes | Flame-proof electromagnetic / DC disc brake |
| Gearbox | Helical, oil-lubricated, low noise |
| Controls | Flame-proof pendant / Wireless remote (optional Ex-certified) |
| Electrical Panel | Explosion-proof FLP panel with cable gland |
| Safety Features | Safety Features Overload limiter, Anti-collision device, Limit switches |
| Hoist Duty Classe | M5 / M6 |
| Crane Duty Class | Class II / III / IV as per IS 3177 |
| Paint & Coating | Anti-corrosive epoxy primer + top coat |
| Compliance | Compliance IS 2148, IS 5572, IS/IEC 60079-1, IS 3177, IS 807 |
